Technology - Tailored to your individual needs

In each property, the conditions and metering equipment are different. Our extensive range of products and solutions for consumption measuring, meter reading and billing of costs for heating, hot & cold water and electric is tailored to the individual needs.

Heat Cost Allocators

Transparent heating bills

The proven technology for measuring heat consumption data. ista offers the state-of-the-art electronic heat allocation meter doprimo III (dual sensor device).

The heat cost allocator (HCA) meter is a cost effective way to measure heat consumption on each apartment radiator. ista electronic HCA, the doprimo 3, is easy to install and is read remotely through our mesh radio network and central positioned GSM gateway; reading by the landlord or tenant is now no longer needed, nor is entry into the apartment. HCA meters are European Energy Directive compliant technology and provides Landlords a cost effective solution for accredited tenant consumption billing.

The benefits of our heat cost allocators doprimo 3

  • Activated when needed: without need to replace the radio module
  • High security settlement reads: interface-free electronic metering
  • Automatic data transfer to ista's billing system: accurate billing with no visit
  • High reliability: Consistently developed technology, based on decades of experience with electronic heat cost allocators
  • Easy change of tenancy: Large storage capacity enables seamless retrieval of the past 14 months end values
  • Wide range of applications: 2-sensor technology ensures precise registration even after conversion of an old boiler at low temperature or condensing technology
  • Understated elegance: In the spirit of current heating designs

Heat and Cooling Meters

Precision and accuracy in energy metering

In times of increasing energy costs, it is important to measure and control energy consumption accurately. We meet our costumers' requirements by offering a variety of highly advanced heat metering instruments. Heat meters are used to measure the physical flow of energy used for heating.

Heat meters are used as heat cost allocators determining the heat consumption. However, unlike heat cost allocators they measure the physical design flow (heat) energy, which is why they are also called calorimeters. The modern measurement technology consists of a flow meter, two temperature sensors and an electronic calculator with LCD display. The first sensor measures the flow temperature and the second temperature sensor is used to detect the return temperature of the heating/cooling circuit. From the resulting temperature difference, flow and heat transfer properties the consumption is determined.

Ultrasonic Heat Meter

Precise measurement of energy consumption

The heat meter generation ultego III with their different series and sizing provides a multitude of combination and application possibilities. In the compact version ultego III smart and perfect range consists of a calculator, flow sensor and temperature sensors. The calculators can be removed and mounted separately and the two external sensors specified at a number of lengths to meet all requirements. Both series can be provided with a number of integrated communication modules and are compliant to the European Measuring Instruments Directive MID.

Application:

  • Heating systems with water as a heat carrier
  • Transfer stations
  • Larger heating systems in apartment buildings
  • Flow range : 0.6 to 60 m3 / h

Your Benefits

  • Accurate, reliable and wear- free measurement
  • Precise detection of even the smallest flow rates
  • Insensitive to dirt and mess resistant
  • Extremely low energy consumption
  • Low pressure loss
  • Fast, intelligent temperature - measuring grid
  • Can be installed horizontally or vertically ( III ultego smart even upside down with removable calculator )
  • Measuring range of flow 1: 100 to EN 1434 , total 1 : 1000
  • Tamper-proof by sealing

Features of the ultego III

ultego III consists of a flow measuring section with two integrated ultrasonic sensors and an electronic calculator with bus output and a lithium battery. The battery life is 10 years plus one year reserve. Flow meters with a nominal flow rate from 3.5 to 60 m3 / h can be delivered.

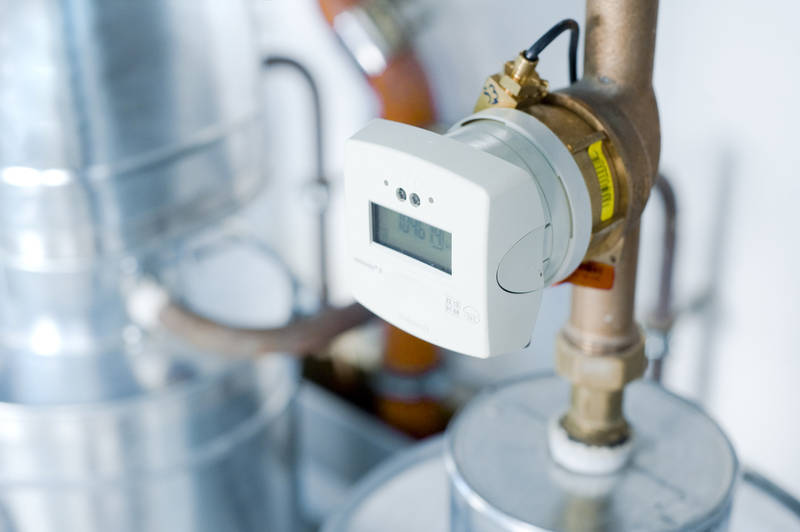

Combined Heat and Cooling Meters - Sensonic II

The sensonic II has a hybrid calculator for the combined detection of heat and cold. The consumption values ​​for both heat and cooling calibration conform to regulation approved devices are shown two counter registers. The meter is available as a compact and combined version suitable for flexible use in residential and commercial properties. Using a combined sensonic II meter means that the installation of an additional refrigeration and heat meter can be omitted, reducing the equipment and installation costs.

Performance of sensonic II

Calibration-law requirements

Our sensonic II hybrid heat meters are approved in Europe under the EU Directive 2004 /22 / EC on measuring instruments. In addition, the refrigerant detection has been certified for Germany according to the guidelines of the Physikalisch -Technische Bundesanstalt ( PTB). So that the devices meet all statutory calibration requirements for precise measurement and legally compliant billing.

Different Configurations

The different types cover a wide range of requirements. The compact version with nominal flow rates of 0.6 / 1.5 and 2.5 m³ / h has been developed specifically for use in residential buildings. With an electronic multi-jet turbine , they have a high measurement stability throughout the life. The larger combined meters where the calculator, flow sensor and temperature sensor are installed separately, are at nominal flow rates up to 250 m³ / h and more suited for the commercial sector .

Switching between heating and cooling Measurement

The temperature difference between supply and return is recorded in 60 second intervals and converted to ​​an energy measurement. This also determines the automatic switching between heating and cooling measurement. The hybrid counter starts with heat detection, when the temperature difference is greater than 0 Kelvin and the flow temperature is above 20 ° C. Similarly, the device switches to cold mode as soon as the water temperature in the flow is less than the return , so there is a negative temperature difference and the flow temperature is less than 20 ° C. The amount of energy consumed is then calculated from the integrated electronic microchip (ASIC ) from the measured readings and various constants for the fluid flowing through (K - factor) and displayed on the LCD.

Utility Metering

Smart Metering & Data Collection

We provide a complete range of utility metering and data collection solutions helping to put you back in control of your costs. ista can advise on all aspects of meter operation, data collection and data aggregation services including sourcing national agreements, service specification and benchmarking of costs.

Inaccurate and infrequent meter readings are a major problem for other utility areas - gas, water, trade effluent.  ista can provide advice and tailored data logging solutions to help understand the relative efficiency of various pieces of plant across a site.

Your Benefits

  • Increased safety
  • Certified devices
  • Regular function checks
  • Smart data collection
  • Innovation
  • Energy Transparency

ista M-Bus

The ista M-Bus system is based upon the M-Bus protocol. It's a tried and tested system and highly adaptable.

There are a variety of masters available, allowing for up to 256 slaves per module. The products for expansion also include: humidity, indoor and outdoor temperature.

Water Meters

Sized according to its use

ista offers water meters to determine the individual water consumption.

Whether hot or cold water, kitchen, bathroom or basement, new construction or commercial, we have the right variant for every application.

Domaqua m

The modularly upgradeable surface-mounted water meter

The Domaqua m is the alternative for many options for use in the residential segment. As a modular water meter, the domaqua m offers in all of its  variants a solution for every type of technology and application.

Your Benefits

  • Trendsetting technology thanks to modular design
  • Broad spectrum of use due to high number of variants
  • Reliable and durable thanks to fully developed technology.
  • Available with nominal flow rates of Qn 1.5 m3/hand Qn 2.5 m3/h as well as installation length of 80,110and 130mm.
  • Can be retrofitted with contact module

Areas of use

As with the istameter system, the following types of mounting are possible depending on the accessory:

  • Flush mounting
  • Surface mounting
  • On the bathroom or kitchen sink

As a single-jet meter, the domaqua m is also well suited for measurement of small consumption quantities, e.g. in flats. Different installation lengths enable the easy replacement of already-mounted meters.

istameter m

Modular Water Meter

This modular water eter is the logoical development of the well-proven original istameter. The modular design provides solutions for use in any technology.

Your benefits

Any use: upgradeable through pulse, radio or M-Bus modules

Easy replacement: the measuring capsule is designed as interchangeable - the lower part of the water meter is installed in the pipeline

Property and bulk water meters

Property and bulk water meters are designed for high flow rates. The domestic water meters are mature, solid and durable multi-jet turbine. The bulk water meters are Woltman, that provide excellent accuracy even under extreme loads.

Your benefits

  • high accuracy over the entire measuring range, even under extreme loads
  • sophisticated, precise and durable equipment
  • ease installtion

Utility Metering

Smart Metering & Data Collection

ista provides a complete range of utility metering and date collection solutions, helping to put you back in control of your costs. ista can advise on all aspects of meter operation, data collection and data aggregation services including sourcing national agreements, services specification and benchmarking of costs.

Incaccurate and infrequent meter readings are a major problem for other utility areas - gas, water, trafe effluent. ista can provide advice and tailored data logging solutions to help understand the relative efficiency of various pieces of plant across a site.

Your Benefits

  • Increased safety
  • Certified devices
  • Regular function checks
  • Smart data collection
  • Innovation
  • Energy Transparency

Radio System

Easy, safe and convenient settlement and consumption data

Our innovative radio system symphonic sensor net provides the highest degree of comfort and flexibility in consumption-based heat and water billing.

All data collected by Heat Cost Allocators, heat and water meters is transmitted wirelessly and only read via pubicly accessible spots in a building.
